K45 / W45 In-Line Sight Glass
K45 / W45 In-Line Sight Glass - Reliable Fluid Inspection for Processing Lines

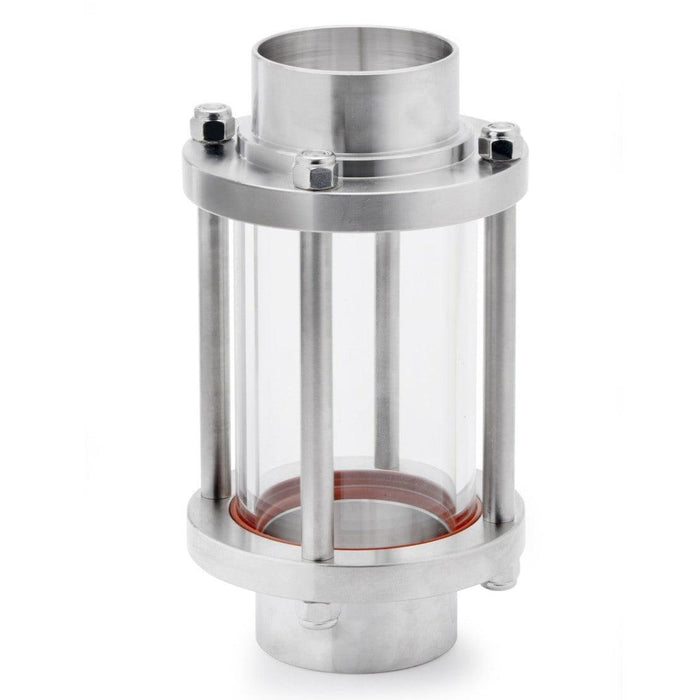

The K45 / W45 In-Line Sight Glass is designed to provide a clear view of fluids flowing through processing lines, making it an essential tool for monitoring operations in food, beverage, pharmaceutical, and other sanitary industries. These sight glasses are constructed from high-strength materials and suitable for vacuum applications, ensuring reliable performance even in demanding conditions.
The K45 / W45 In-Line Sight Glass features durable borosilicate tubes, offering excellent visibility and resistance to high temperatures. Special tie rods and seals ensure that the sight glass remains secure and resistant to load pressures and vibrations, making it ideal for both continuous monitoring and critical inspections.
Key Features:
- High-strength construction designed for vacuum applications.
- Borosilicate glass for durability and clear visibility.
- Equipped with special tie rods and seals to prevent load pressures and vibrations on the glass.
- Suitable for viewing product flow from the side or above the processing line.
Technical Data:
- Maximum Operating Temperature: 230°C (450°F) for line sight glasses.
- Finish: 120 grit.
- Production Range: Available in sizes from 1" to 4".
- Connections: Weld End or Tri-Clamp Ferrule End.
- Material: AISI 304L Stainless Steel.
- Seal Temperature: Silicone (-50°C to +200°C / -60°F to +390°F).
This In-Line Sight Glass provides reliable and secure fluid inspection for processing lines, ensuring high visibility and performance in demanding environments.
K45 / W45 In-Line Sight Glasses:
Glass Dimensions & Maximum Pressure
| Size | Outer Diameter | Thickness | Length | Pressure |
| 1.0" | 30 mm | 4.5 mm | 90 mm | 16 Bar |
| 1.5" | 45 mm | 5 mm | 90 mm | 14 Bar |
| 2.0" | 60 mm | 5 mm | 90 mm | 10 Bar |
| 2.5" | 70 mm | 5 mm | 90 mm | 9 Bar |
| 3.0" | 80 mm | 5 mm | 90 mm | 7 Bar |
| 4.0" | 115 mm | 5 mm | 90 mm | 6 Bar |
Seal Dimensions:
| Size | Outer Diameter |
| 1.0" | 34 mm |
| 1.5" | 49 mm |
| 2.0" | 64 mm |
| 2.5" | 74 mm |
| 3.0" | 84 mm |
| 4.0" | 120 mm |
