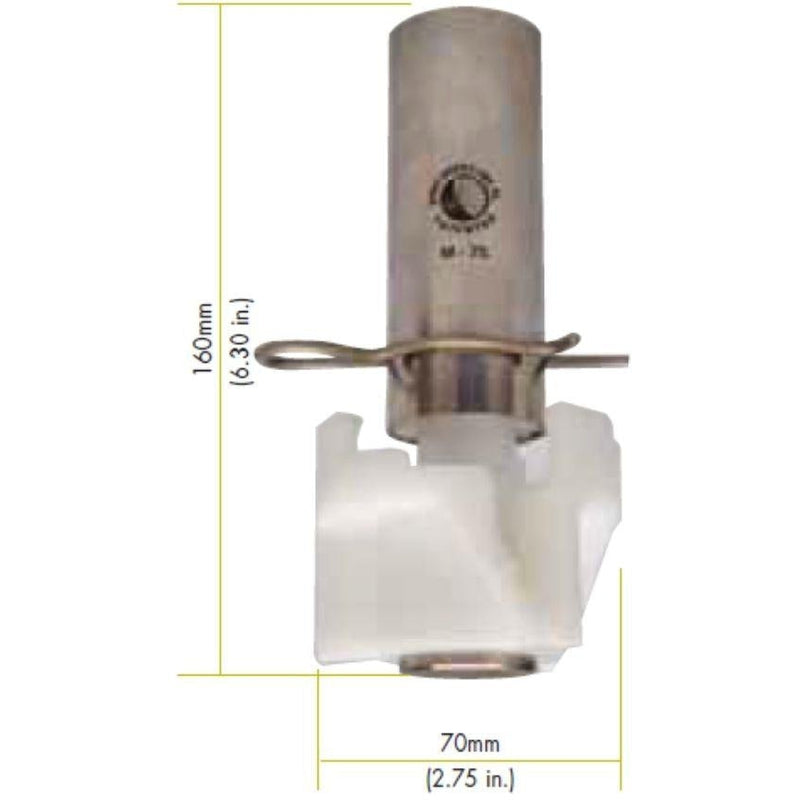

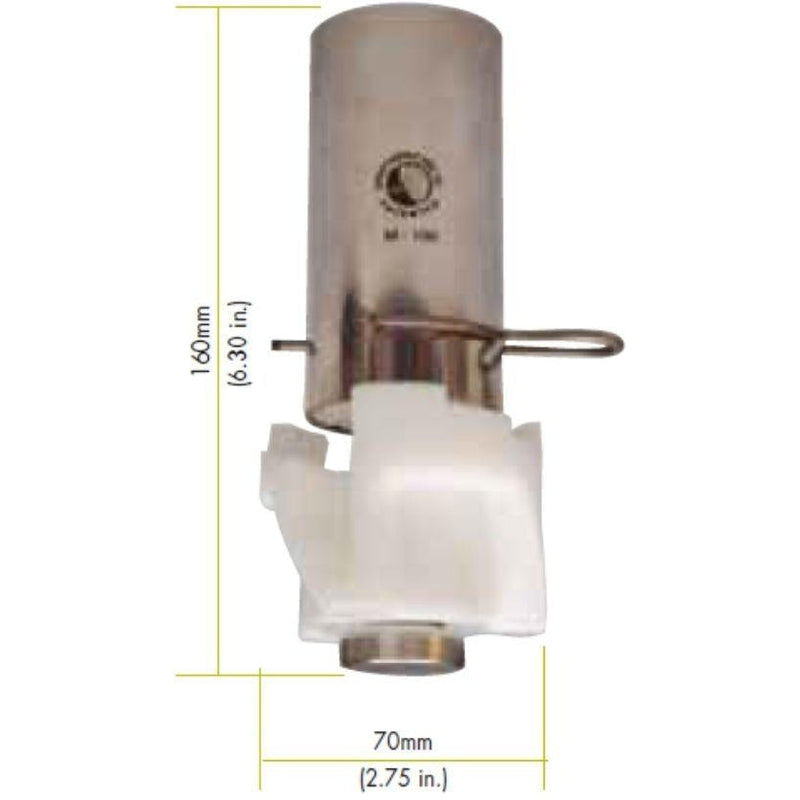

M-Series Rotating Tank Cleaning Nozzle

M-Series Rotating Tank Cleaning Nozzle - Advanced CIP Tank Cleaning Solution

The M-Series Tank Cleaning Nozzle is designed for use in Clean-In-Place (CIP) applications, offering superior cleaning performance at low pressure and flow rates. Manufactured with high-grade 316 stainless steel and FDA-approved ACETAL-CoPolymer, this self-powered cleaning system provides comprehensive tank interior cleaning for various industrial applications. This specialized nozzle ensures efficient cleaning coverage, making it ideal for use in wine, food, beverage, dairy, chemical, and pharmaceutical industries.

Key Features:

• Patented mist-reducing head design for improved impact
• Self-cleaning capability with dedicated downward wash-jet
• Bearingless design for enhanced reliability
• Even, heavy stream-like cleaning pattern
• Special emphasis on entry point cleaning
• Compatible with standard A270 tubing

Specifications:

• Material: AISI 316 stainless steel shaft/body, ACETAL-CoPolymer rotor (FDA approved)
• Minimum Pressure: 1.5 Bar Gauge (30 psi)
• Maximum Temperature: 120°C (250°F)
• Models/Weights:
  • M-50: 0.19kg (0.41lb)
  • M-75: 0.44kg (1.0lb)
  • M-100: 0.5kg (1.1lb)
• Operation: Self-powered by cleaning fluid

The M-Series Rotating Tank Cleaning Nozzle provides efficient and reliable CIP solutions for industries requiring thorough tank cleaning capabilities.
