Understanding Different Types of Tri-Clamp Gaskets for Breweries and Beverage Manufacturers

Selecting the right tri-clamp gasket is critical when maintaining a clean, safe, and efficient brewing or beverage manufacturing process. Tri-clamp gaskets are used extensively in sanitary piping systems to create secure, leak-free connections. The gaskets in these fittings ensure the system remains sealed, preventing contamination while maintaining optimal pressure and flow rates. Several types of tri-clamp gaskets are designed for specific applications and environments. In this post, we’ll walk through the most common types of tri-clamp gaskets: standard, mesh, perforated, sock, orifice plate, flanged, metal detectable, envelope, and guard gauge.

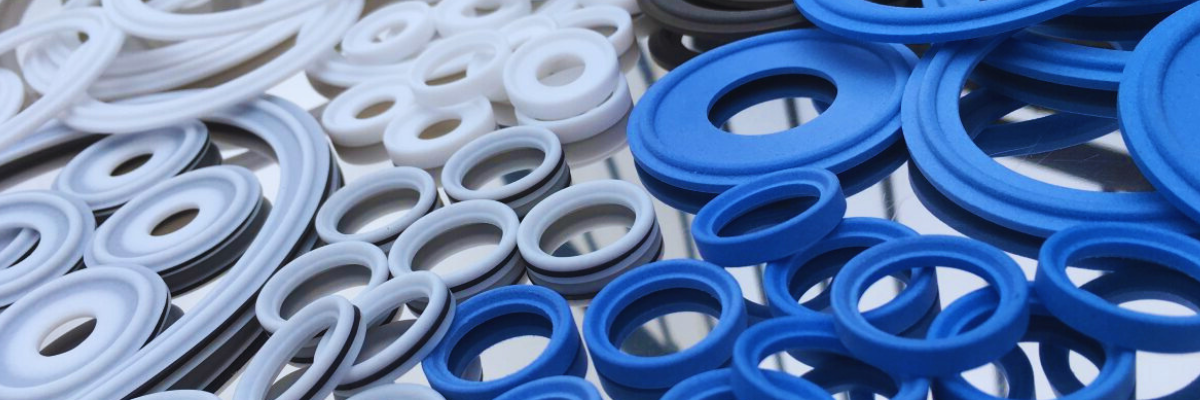

1. Standard Tri-Clamp Gaskets

Standard tri-clamp gaskets are the most commonly used gaskets in tri-clamp systems. Typically made from elastomers like EPDM, PTFE, or silicone, these tri-clamp gaskets offer a simple and effective sealing solution for many applications. They are designed to create a secure, leak-free seal between two tri-clamp fittings, making them ideal for most general brewing and beverage manufacturing processes.

Figure 1 - 40MP Tri-Clamp Gasket

Key Benefits:

• Versatile and cost-effective
• Ideal for general applications
• Available in a wide range of materials to suit different operating conditions

2. Mesh Tri-Clamp Gaskets

Mesh tri-clamp gaskets protect sensitive downstream equipment from potentially damaging debris in the system. Made from stainless steel or other durable materials, the mesh layer acts as a protective barrier, preventing large particles such as weld beads, scale, grit, or other foreign materials from entering pumps, valves, or heat exchangers. These tri-clamp gaskets do not filter the product but help maintain equipment integrity by reducing the risk of blockages and wear, making them an essential protective component in process systems.

Key Benefits:

• Prevents large particles from damaging or clogging sensitive equipment
• Protects pumps, valves, and other critical components
• Ideal for systems where debris or foreign materials are a concern
• Mesh number indicates the level of fineness, with higher numbers offering finer protection

3. Perforated Tri-Clamp Gaskets

Perforated tri-clamp gaskets are designed with small holes or perforations that allow for controlled flow of liquids or gases while preventing larger particles from entering and damaging the equipment downstream. The standard perforation size is typically 0.33 inches, making them suitable for systems where particulates like pipe scale or grit need to be kept out, ensuring optimal flow and system performance.

Key Benefits:

• Prevents large debris from clogging or damaging downstream equipment
• Allows fluid or gas flow while providing protection
• Ideal for systems where particles need to be prevented from entering critical components
• Standard perforation size of 0.33 inches for effective protection

4. Sock Tri-Clamp Gaskets

Sock tri-clamp gaskets are designed to fit snugly around the inner diameter (I.D.) of tri-clamp fittings, providing enhanced sealing and preventing contaminants from entering the system. These tri-clamp gaskets are made from flexible materials, allowing for easy installation and removal while offering reliable sealing even under fluctuating system pressures.

The sock-shaped design provides more surface contact and better retention compared to traditional tri-clamp gaskets, making them ideal for applications that require frequent disassembly or cleaning. Sock tri-clamp gaskets are commonly used in processes where equipment must be disassembled and reassembled regularly, such as in brewing or food and beverage manufacturing.

Figure 4 - Tri-Clamp Sock Gasket

Key Benefits:

• Provides enhanced sealing with more surface contact
• Flexible and easy to install, ideal for frequent disassembly or cleaning
• Prevents contaminants from entering the system
• Ideal for use in brewing, food, and beverage manufacturing processes

5. Orifice Plate Tri-Clamp Gaskets

An orifice plate tri-clamp gasket, or orifice gasket, is used in pipeline systems, particularly in sanitary applications, to adjust flow rates, balance backflow, and equalize back pressure. This tri-clamp gasket incorporates an orifice plate, a flat disc with a hole in the center, to regulate the flow of liquids or gases through the system. The orifice size can be customized to meet specific flow requirements, making orifice plate tri-clamp gaskets essential in applications where precise control over fluid or gas flow is necessary.

Orifice plate tri-clamp gaskets are especially common in Clean-In-Place (CIP) systems, where different pieces of equipment require different flow rates for cleaning and sanitizing. By adjusting the flow to the optimal rate for each piece of equipment, orifice plate tri-clamp gaskets help maintain efficiency, minimize waste, and ensure that the cleaning process is effective and uniform.

Key Benefits:

• Adjusts flow rates, balances backflow, and equalizes back pressure to optimize system performance
• Essential for CIP systems where different equipment requires different flow rates
• Customizable orifice size to meet specific flow requirements for various processes
• Helps maintain consistent pressure and flow, preventing system stress and ensuring efficient operation

6. Flanged Tri-Clamp Gaskets

Flanged tri-clamp gaskets are designed to provide a secure seal between two flanged fittings, ensuring a tight connection in sanitary pipeline systems. The flange allows the tri-clamp gasket to hold onto the ferrule more effectively, making installation easier and more manageable. This feature is handy when installing or removing the gasket, as it simplifies handling and positioning.

Flanged tri-clamp gaskets are commonly used in applications with a reliable seal, such as in brewing tanks, large-scale processing equipment, or systems with high-flow rates. Their ability to stay in place during installation ensures that the system can be quickly reassembled, reducing downtime and maintaining efficiency.

Key Benefits:

• The flange helps the gasket hold onto the ferrule, simplifying installation
• Provides a secure, reliable seal between flanged fittings
• Ideal for systems with high pressure or temperature fluctuations
• Reduces installation time and effort, making it easier to assemble and disassemble systems

7. Metal Detectable Tri-Clamp Gaskets

Metal-detectable tri-clamp gaskets are made from materials that can be detected by metal detectors or X-ray systems. This ensures that any gasket fragments that break off can be easily identified and removed from the system. These gaskets are essential in industries like food, beverage, and pharmaceuticals, where contamination risks must be minimized.

Manufacturers reduce the risk of product recalls, downtime, and costly repairs due to undetected wear by using metal-detectable materials. These tri-clamp gaskets are made from durable elastomers like EPDM, silicone, and PTFE, which can withstand harsh environments and high temperatures while providing a tight, leak-free seal.

Key Benefits:

• Quickly detectable by metal detectors or X-ray systems to prevent contamination
• Reduces the risk of product recalls and costly repairs
• Made from durable elastomers that can withstand harsh industrial conditions
• FDA-approved for use in food and healthcare industries

8. Envelope Tri-Clamp Gaskets

A tri-clamp envelope gasket, used in sanitary applications, features a PTFE (Teflon) exterior and a core material, such as EPDM or FKM, providing a secure, leak-proof connection. This combination offers excellent chemical resistance from the PTFE outer layer while maintaining sealing characteristics with the core material. It is ideal for applications that require both durability and resistance to harsh chemicals.

Envelope tri-clamp gaskets are commonly used in systems where chemical resistance and a reliable, leak-proof seal are essential, such as in pharmaceutical, food, and beverage processing.

Key Benefits:

• PTFE exterior offers excellent chemical resistance
• Core material (EPDM or FKM) ensures a secure, leak-proof seal
• Ideal for sanitary applications in food, beverage, and pharmaceutical industries
• Combines durability and sealing performance for demanding environments

9. Guard Gauge Tri-Clamp Gaskets

Guard gauge tri-clamp gaskets are designed to maintain a barrier between the metal diaphragms of a sanitary pressure gauge and the process fluid. These gaskets are compatible with sanitary Tri-Clamp pressure gauges and work to protect the diaphragm from exposure to harsh chemicals, acids, bases, salt solutions, and hot liquids, which could otherwise cause damage.

These gaskets use a non-metallic diaphragm to ensure the longevity and accuracy of the pressure gauge, preventing potential damage and maintaining reliable pressure readings. Guard gauge tri-clamp gaskets are essential in systems where pressure monitoring is crucial, such as brewing and beverage production.

Key Benefits:

• Protects the metal diaphragm of pressure gauges from harsh chemicals and hot liquids
• Ensures accurate and reliable pressure readings
• Compatible with sanitary Tri-Clamp pressure gauges
• Prevents damage to the gauge, extending its lifespan and reducing downtime

Conclusion

Selecting the right tri-clamp gasket is essential for maintaining a secure, leak-free brewing and beverage manufacturing system. Each type of tri-clamp gasket—a standard, mesh, perforated, sock, orifice plate, flanged, metal detectable, envelope, or guard gauge gasket—offers unique benefits tailored to specific applications. By understanding the advantages and appropriate uses of each tri-clamp gasket type, manufacturers can ensure system efficiency, reduce maintenance costs, and minimize the risk of contamination. At Gorman & Smith Beverage Equipment, we're committed to providing high-quality tri-clamp fittings and gaskets to meet the needs of the food and beverage industry, helping you maintain smooth, reliable operations.
